Can anyone tell me the difference between a Motorcraft 2100 and the 2700 carbs, other than 600. Will this work on a AMC 304 . My carb is junk and I could do a rebuild or replace it with a new 2700 that's knocking on my door.
I think that is a variable venturi carb that Ford used. I think it has the same flange pattern, but I have no operational knowledge.
LongHorn
Always Off-Roading Jeeper
- Posts
- 5,325
- Media
- 39
- Thanks
- 1
- Location
- Washington Co.,Texas
- Vehicle(s)
- 83'CJ-8 Scrambler Slightly Modified;),48'CJ2A, 54'CJ3B 67'Jeep M-725, 88'YJeep Wrangler Slightly Modified;)

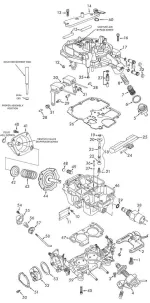

Exploded View of a Motorcraft 2700VV Carburetor
Find the part you need by number:
Find the part you need by number:
elwood blues
Always Off-Roading Jeeper
- Posts
- 6,023
- Media
- 71
- Solutions
- 1
- Thanks
- 49
- Location
- Export, PA
- Vehicle(s)
- 1978 CJ7 4.2L Comp Cam & valve train, MC2100 carb, MSD ignition, Dana 30 front, T18 trans, Dana 20 txfr, AMC 20 rear.
You just keep proving me wrong LongHorn
If the variable venturi carb is a 2700, that is definately not what you want plumcrazy.
If the variable venturi carb is a 2700, that is definately not what you want plumcrazy.
elwood blues
Always Off-Roading Jeeper
- Posts
- 6,023
- Media
- 71
- Solutions
- 1
- Thanks
- 49
- Location
- Export, PA
- Vehicle(s)
- 1978 CJ7 4.2L Comp Cam & valve train, MC2100 carb, MSD ignition, Dana 30 front, T18 trans, Dana 20 txfr, AMC 20 rear.
Spent a little time researching the Ford Variable Venturi carbs. There are 2700 series and 7200 series Variable Venturi carbs. However, no one had anything good to say about these carbs. They were Fords attempt to make a carb/trottle body injection hybrid before they went to fuel injection. They are apperantly overly complecated, difficult to work on and difficult to keep tuned correctly. They were found on Crown Vics, Mustangs, and some F series pick-ups. Again, LongHorn, as long as you're around I'm going to have to triple check my info .
.
Im pretty sure I have what you need. What venturi size? I'll grab a pic when I get home from work.
Can anyone tell me the difference between a Motorcraft 2100 and the 2700 carbs, other than 600. Will this work on a AMC 304 . My carb is junk and I could do a rebuild or replace it with a new 2700 that's knocking on my door.
plumcrazy
Jeeper
Great info guys, I think I'll just rebuild my 2100 for now, until I can find a good deal on a 4 barrel set up. Thanks
